/PHardware catalogue

Smart meters & breakers, cloud-ready out of the box.

Every device below connects straight to the Splinergy platform for live monitoring, automated tenant billing and remote control. Pick the meter that fits the circuit; we handle the rest.

  • 1-phase
  • DIN rail
  • 4G LTE
  • Remote on/off

Compact DIN-rail sub-meter with its own 4G uplink. No Wi-Fi, no gateway, no site network needed.

What it does

  • Remote power on / off
  • Prepaid & postpaid billing
  • Live readings
  • Consumption analytics

Key specs

Rated voltage
220 V AC, 50 Hz
Max current
60 A (direct connection)
Communication
4G LTE (built-in)
Mounting
35 mm DIN rail

Ideal for

  • Hostel & co-living rooms
  • Shoplots & retail units
  • Factory sub-circuits
  • Sites without Wi-Fi
RM200.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 1-phase
  • DIN rail
  • Wi-Fi
  • Remote on/off

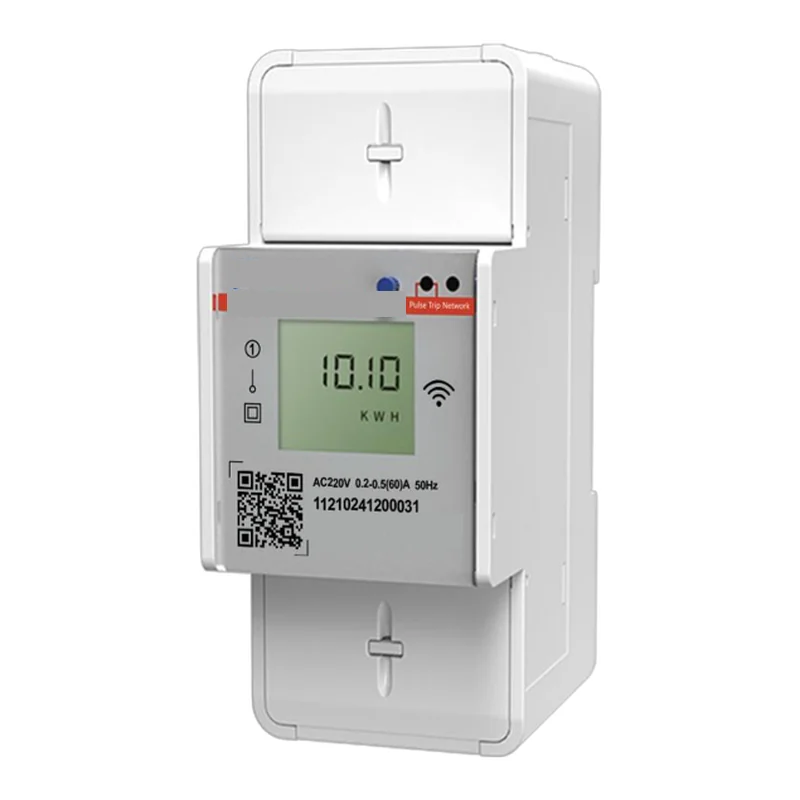

The most cost-effective way to meter and control a single-phase circuit where Wi-Fi is available.

What it does

  • Remote power on / off
  • Prepaid & postpaid billing
  • Live readings
  • No data plan

Key specs

Rated voltage
220 V AC, 50 Hz
Max current
60 A (direct connection)
Communication
Wi-Fi 2.4 GHz
Mounting
35 mm DIN rail

Ideal for

  • Condo & apartment units
  • Rented rooms
  • Small offices
  • Homestays & Airbnb
RM130.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 1-phase
  • Wall mount
  • 4G LTE
  • Remote on/off

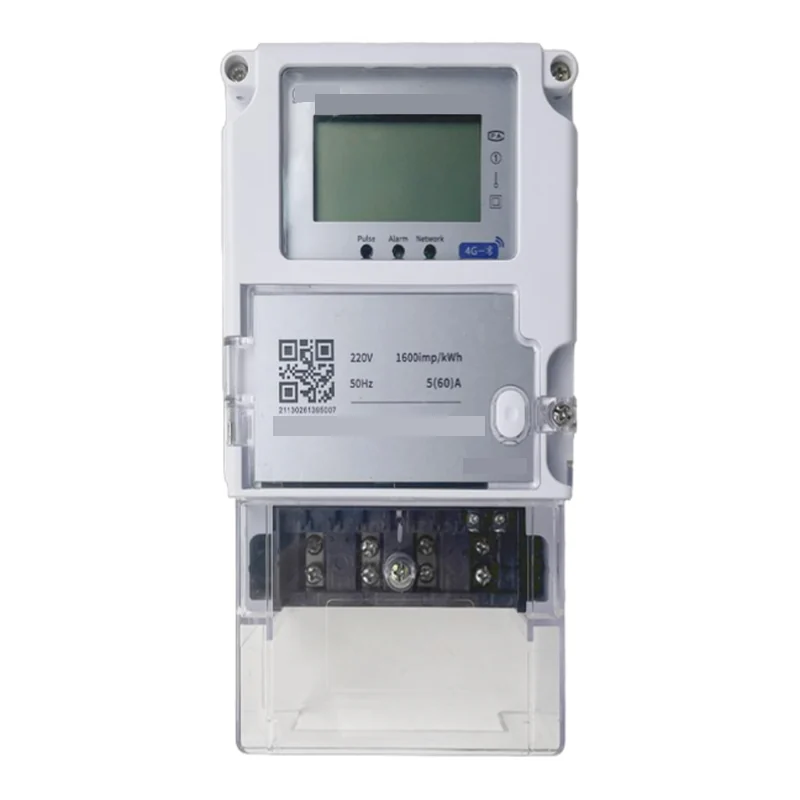

Utility-style wall meter with a sealed terminal cover and its own 4G connection.

What it does

  • Remote power on / off
  • Tamper-resistant
  • Prepaid & postpaid billing
  • Alarm & network status

Key specs

Rated voltage
220 V AC, 50 Hz
Current
5(60) A
Communication
4G LTE (built-in)
Mounting
Wall-mounted, sealable terminal cover

Ideal for

  • Landed & terrace houses
  • Meter rooms & boards
  • Workers' quarters
  • Rural or remote sites
RM230.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 1-phase
  • Wall mount
  • Wi-Fi
  • Remote on/off

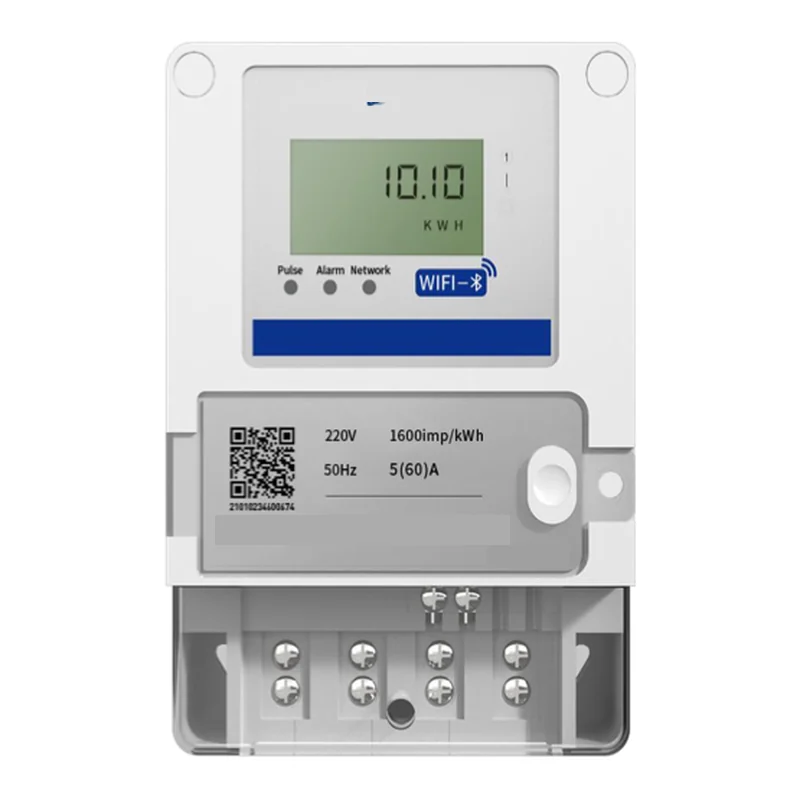

Wall-mounted utility-format meter that rides on the building's Wi-Fi with no data plan.

What it does

  • Remote power on / off
  • Tamper-resistant
  • Prepaid & postpaid billing
  • No data plan

Key specs

Rated voltage
220 V AC, 50 Hz
Current
5(60) A
Communication
Wi-Fi 2.4 GHz
Mounting
Wall-mounted, sealable terminal cover

Ideal for

  • Apartment blocks
  • Student housing
  • Managed rental property
  • Staff accommodation
RM160.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 3-phase
  • DIN rail
  • 4G LTE
  • Direct connect

Three-phase metering and remote control for shops, workshops and light-industrial units. Wires in directly, no CTs.

What it does

  • Remote trip / restore
  • Active & reactive energy
  • Direct connection
  • On-device navigation

Key specs

Rated voltage
3 × 230/400 V AC, 50 Hz
Communication
4G LTE with external antenna
Mounting
35 mm DIN rail
Connection
Direct (no CT required)

Ideal for

  • Three-phase shoplots
  • F&B outlets
  • Workshops
  • Small factories
RM450.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 3-phase
  • DIN rail
  • 4G LTE
  • CT-operated

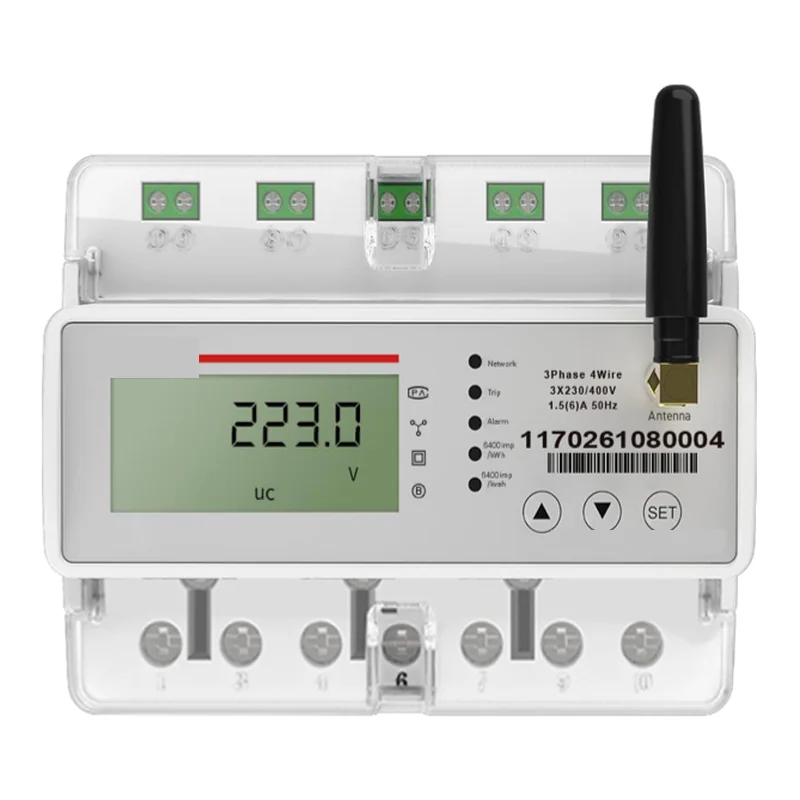

CT-operated three-phase meter for loads beyond direct-connect range, from sub-mains to whole buildings.

What it does

  • Scales with CT size
  • Active & reactive energy
  • 4G direct to cloud
  • Billing-ready data

Key specs

Rated voltage
3 × 230/400 V AC, 50 Hz
Current input
1.5(6) A via external CT
Communication
4G LTE with external antenna
Mounting
35 mm DIN rail

Ideal for

  • Main incomers
  • Sub-distribution boards
  • Commercial buildings
  • Industrial tenants
RM420.00/ unit
+ RM 10 / meter / month platform
Details Quote
  • 3-phase
  • DIN rail
  • 4G LTE
  • Class 0.5S
  • Harmonics

High-accuracy three-phase power analyser with harmonics. Supplied with 100 A CTs.

What it does

  • Power-quality analysis
  • Full electrical parameters
  • High accuracy
  • 100 A CT included

Key specs

Rated voltage
3 × 230/400 V AC, 50 Hz
Current input
External CT, 100 A included
Communication
4G LTE
Mounting
35 mm DIN rail

Ideal for

  • Solar PV & PPA monitoring
  • Main incomer power quality
  • Energy audits
  • EV charging sites
RM800.00/ unit
+ RM 10 / meter / month platform
Details Quote
Splinergy PSNA-6

Modular Smart Breaker System

  • 1-phase
  • DIN rail
  • 4G / Wi-Fi
  • Stackable
  • RCD protection

One gateway, many circuits. Stack PSNA-6 metering modules to build a multi-channel smart breaker board.

What it does

  • Stackable channels
  • Breaker-grade protection
  • Cloud-set thresholds
  • Per-channel telemetry

Key specs

Rated voltage
220 V AC, 50 Hz
Rated current
1–80 A (configurable)
Communication
4G LTE or Wi-Fi (gateway); M2M data plans from RM 35/year
Architecture
Gateway (2-pole, 1Φ) + stackable EM modules

Ideal for

  • Multi-room hostels
  • Industrial distribution boards
  • EV charger circuits
  • Retrofit of existing boards
Quote on request
+ RM 10 / module / month platform
Details Quote
Splinergy M2M SIM

M2M Data SIM Plans (Yearly)

  • 4G LTE
  • Yearly plans
  • SIM card free
  • No contract

Managed 4G data for your Splinergy devices. One yearly payment per SIM, no carrier contracts, SIM card free with any plan.

What it does

  • Sized for IoT
  • High-data tiers
  • One yearly bill
  • Free SIM card

Key specs

Network
4G LTE
Roaming plans (low data)
30 MB – 300 MB per month
M2M plans (high data)
1 GB – 30 GB per month
Billing
Yearly, per SIM

Ideal for

  • 4G smart meters
  • PSNA-6 gateways
  • EV chargers
  • Remote sites without Wi-Fi
fromRM35.00/ year
Details Quote
List prices in Malaysian Ringgit: devices per unit, data plans per SIM per year. Volume and project pricing available. Talk to sales
